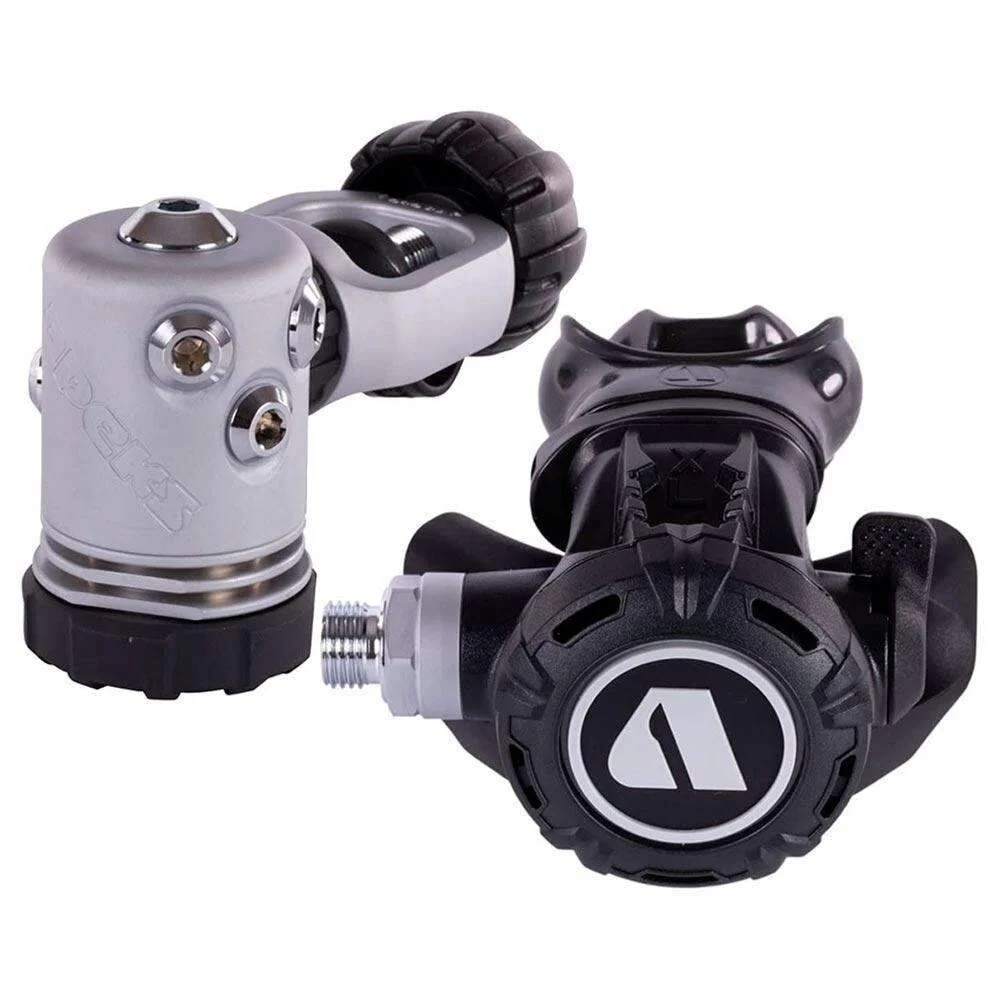

Apeks XL4
Apeks XL4
The Apeks XL4 Regulator is a compact, lightweight regulator suitable for diving in all environments including cold water locations. Its design and low weight help reduce jaw fatigue on long dives. The XL4 also makes an ideal stage regulator and is also an excellent high-performance option for the technical exploration diver who is serious about maximizing functionality and minimizing weight.
Shipping Information
- Inventory is updated every
24 hours
- Products ship on Tuesdays and Thursdays
- Products/Sizes/Colour options not in stock can be requested
using the Product Request Form here:
Features:

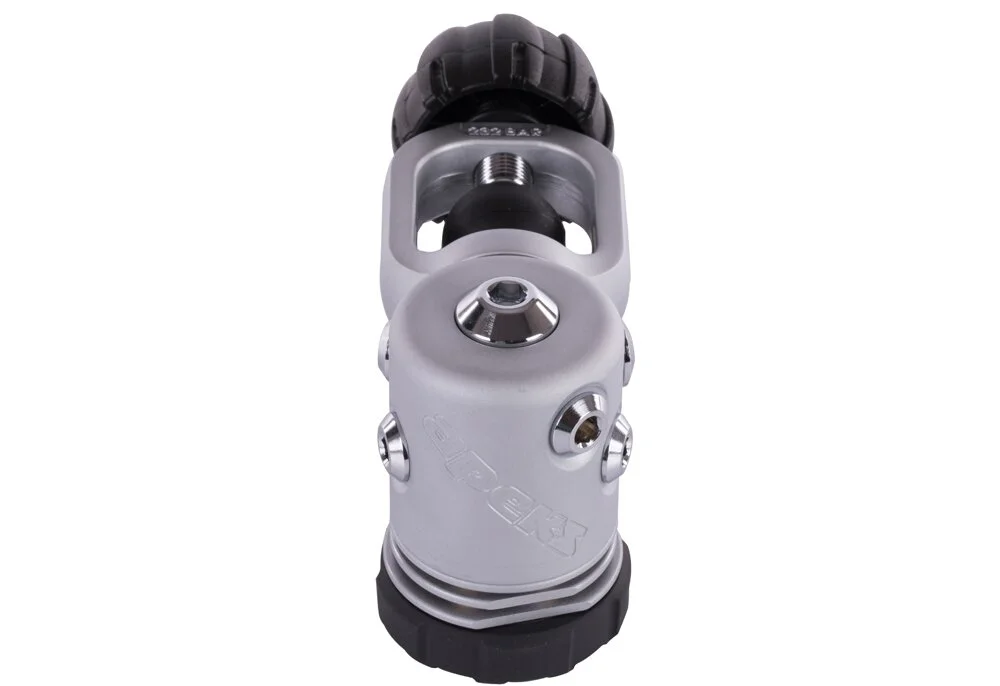

1st Stage
Breakthrough, innovative over-moulded first-stage endcap and environmental diaphragm help prevent ice build-up that can cause first stage free flow in extreme circumstances. Also protects the first stage from impact damage
Large surface area heat exchanger diaphragm clamp helps increase the gas temperature inside the 1st stage, resulting in improved cold water performance
Unique over-balanced diaphragm design—as the diver descends, the over-balancing feature allows the medium pressure gas in the hose to increase at a faster rate than ambient. This results in superior performance at depth
Compact machined 1st stage based on the expedition tested Apeks DS4 platform.
2nd Stage
Compact and lightweight 2nd stage improves comfort and helps reduce jaw fatigue on long duration dives
High-performance, pneumatically-balanced, lever-operated poppet valve
Large, over-moulded, self-flushing and controllable purge button
Ergonomic Venturi lever is easy to use and locate
Flexible nylon braided hose has better cold water performance than traditional rubber hose
Standard metallic hose connection for interchangeability
Comfo-biteTM mouthpiece has a unique bridge that fits across the upper palate and does not require bite pressure to stay in place
Re-useable mouthpiece clip makes it simple to change mouthpieces in the field
Durable and flexible rubber exhaust tee provides excellent bubble diversion.
Specifications:
Connections: Yoke and DIN available
Type of first stage: Over-balanced diaphragm design, environmentally sealed
Body Type: One piece forged body
Number of HP ports: 1 (7/16" UNF)
Number of MP ports: 4 (3/8" UNF)
Environmental Dry Kit: Standard
First stage exterior: Satin
Orientation: Convertible LH or RH
Coldwater Use: Yes
Type of second stage: Pneumatically balanced
Opening Effort Control Knob: Yes
Integrated Venturi Lever: Yes
Mouthpiece: Comfo-bite™
Exhaust tee: Standard, one set
Heat Exchanger for freezing resistance: Yes
Hose typeBraided Flexi-hose
Overall work of breathing (WOB) scoresAvg. 0.90 joules/litre
Nitrox compatibleYes to 40% O2 when new, out of the box / Can be O2 cleaned to 100%.
